How to install

You will receive Bottom Plate (16.5 inch long two pieces) with locking hooks installed, two T shaped Silicon Rubber flaps ( 22 inch long each) and single side tapes two pieces ( 22 inch long) as shown in above pictures. Though it is not the actual size, but those are the actual shapes.  Make sure you pull the stove and clean under the floor and sides thoroughly before you proceed with the installation. Remember to check the power plug and make sure it is all the way in before you push the stove back to the slot.

Bottom Plate installation instruction videos use You Tube link below

https://youtu.be/L5itapfz83s

If link don't work please type Dirt Preventer Bot Plt Install on your Youtube search bar.

Step 1:   Place the Single sided adhesive 22 inch long tape on Kitchen Cabinet edge which is close to the Stove as shown in the picture (A) below.

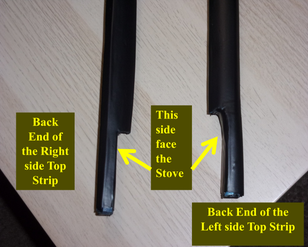

Step 2:  Place the 22 inch long Top Seal Strips on the gaps between Stove & Cabinet on both sides as shown in above pictures (B).

Step 3: Pickup the two pieces of Bottom Plate & join them to gather using adjuster slot. See picture (C) below.

Picture (C)

Step 4: Place the bottom plate on the floor in front of the Stove opening as per Picture (D) Make sure the bottom plate base is resting on the ground, see picture (D1)

Step 5: Make sure the Bottom Plate Hook bolts are tilted away from the Stove leg as shown in the  picture (E) below.

Step 6:  Stretch the Bottom plate from both ends (beyond the width of the Stove) for hooks to clear the Stove Leg when pushing the Bottom Plate to cover the gap below the Stove.

Picture (E)

NOTE: If your stove is equipped with a bottom drawer you may remove it to get a better view of the Stove leg-post-area where the Bottom Plate is placed, See picture (F)

Step 7:  Slowly (While Bolts stays inclined) Push the Bottom Plate under the Stove to cover the gap below the Stove until the side strips of the Bottom Plate hit the Kitchen Cabinet front bottom wood panel. Pl see the Picture (G) below.

Picture (H)
